Prefer Structured Lifetimes: Local, Nested, Bounded, Deterministic

void f() {
  //
  g();	// jump to function g here and then
  // return from function g and continue here!
  //
}

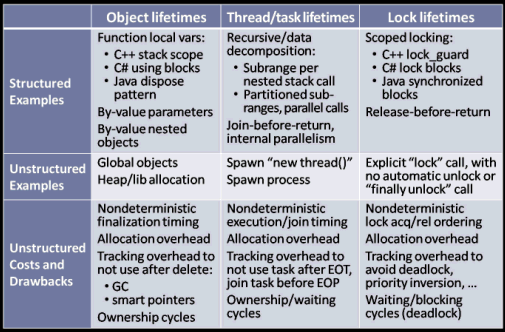

For familiarity, let's start with object lifetimes (left column). I'll dwell on it a little, because the fundamental issues are the same as in the next two columns even though those more directly involve concurrency.

In the mainstream OO languages, a structured object lifetime begins with the constructor, and ends with the destructor (C++) or dispose method (C# and Java) being called before returning from the scope or function in which the object was created. The bounded, nested lifetime means that cleanup of a structured object is deterministic, which is great because there's no reason to hold onto a resource longer than we need it. The object's cleanup is also typically much faster, both in itself and in its performance impact on the rest of the system. [2] In all of the popular mainstream languages, programmers directly use structured function-local object lifetimes where possible for code clarity and performance:

• In some languages, we get to express the structured lifetime using a language feature, such as stack-based or by-value nested member objects in C++, and using blocks in C#.
• In other languages, we use a programming idiom or convention, such as the try/finally dispose pattern in Java, and explicit dispose-chaining (to have our object's dispose also call dispose on other objects exclusively owned by our object, the equivalent of by-value nested member objects) in both C# and Java.

Unstructured, non-local object lifetimes happen with global objects or dynamically allocated objects, which include objects your program may explicitly allocate on the heap and objects that a library you use may allocate on demand on your behalf. Even basic allocation costs more for unstructured, heap-based objects than for structured, stack-based ones. Objects with unstructured lifetimes also require more bookkeeping -- either by you such as by using smart pointers, or by the system such as with garbage collection and finalization. Importantly, note that C# and Java GC-time finalization [3] is not the same as disposing, and you can only do a restricted set of things in a finalizer. For example, in object A's finalizer it's not generally safe to use any other finalizable object B, because B might already have been finalized and no longer be in a usable state. Lest we be tempted to sneer at finalizers, however, note also that C++'s shutdown rules for global/static objects, while somewhat more deterministic, are intricate bordering on arcane and require great care to use reliably. So having an unstructured lifetime really does have wide-ranging consequences to the robustness and determinism of your program, particularly when it's time to release resources or shut down the whole system.

Speaking of shutdown: Have you ever noticed that program shutdown is inherently a deeply mysterious time? Getting orderly shutdown right requires great care, and the major root cause is unstructured lifetimes: the need to carefully clean up objects whose lifetimes are not deterministically nested and that might depend on each other. For example, if we have an open SQLConnection object, on the one hand we must be sure to Close() or Dispose() it before the program exits; but on the other hand, we can't do that while any other part of the program might still need to use it. The system usually does the heavy lifting for us for a few well-known global facilities like console I/O, but we have to worry about this ourselves for everything else.

This isn't to say that unstructured lifetimes shouldn't be used; clearly, they're frequently necessary. But unstructured lifetimes shouldn't be the default, and should be replaced by structured lifetimes wherever possible. Managing nondeterministic object lifetimes can be hard enough in sequential code, and is more complex still in concurrent code.

Enter Concurrency

All of the issues and costs associated with unstructured object lifetimes apply in full force to concurrency. And not only do we see "similar" issues and costs arise in the case of unstructured concurrency, but often we see the very same ones.

Threads and tasks have unstructured lifetimes by default on most systems, and therefore by default non-local, non-nested, unbounded, and nondeterministic. That's the root cause of most of threads' major problems. [4] As with unstructured object lifetimes, to manage unstructured thread and task lifetimes we need to perform tracking to make sure we don't try to wait for or communicate with a task after that task has already ended (similar to use-after-delete or use-after-dispose issues with objects); and to join with a thread before the end of the program to avoid risking undefined behavior on nearly all platforms (similar to unstructured "eventual" finalization at shutdown time). Unstructured threads and tasks also incur extra over-heads [5], such as extra blocking when we attempt to join with multiple pieces of work; they are also more likely to have ownership cycles that have to be detected and cleaned up, and similarly for waiting cycles and even deadlock (e.g., when two threads wait for each other's messages).

Structured thread and task lifetimes are certainly possible. You just have to make it happen by applying a dose of discipline when they aren't structured by default: A function that spawns some asynchronous work has to be careful to also join with that work before the function itself returns, so that the lifetime of the spawned work is a subset of the invoking function's lifetime and there are no outstanding tasks, no pending futures, no lazily deferred side effects that the caller will assume are already complete. Otherwise, chaos can result, as we'll see when we analyze an example of this in the next section.

With locks, the stakes are higher still to keep lifetimes bounded -- the shorter the better -- and deterministic. Deadlocks happen often enough when lock lifetimes all are structured, and being structured isn't enough by itself to avoid deadlock [6]; but toying with unstructured locking is just asking for a generous helping of latent deadlocks to be sprinkled throughout your application. Unstructured lock lifetimes also incur the other issues common to all unstructured lifetimes, including tracking overhead to manage the locks, and performance overhead from excessive waiting/blocking that can cause throttling and delay even when there isn't an outright deadlock.

Given the stakes, it's no surprise that every major OO language offers direct language support for bounded lock lifetimes where the lock is automatically released at the end of the scope or the function:

• C++0x has std::lock_guard, which is used in a way that just leverages C++'s bounded stack-based variable rules.
• C# has lock blocks, and can also leverage its using blocks with lock types that implement IDisposable.
• Java has synchronized blocks, and can leverage the try/finally dispose pattern for disposable lock objects.

These tools exist for a reason. Strongly prefer using these structured lifetime mechanisms for scoped locking whenever possible, instead of following the dark path of unstructured locking by explicit standalone calls to Lock functions without at least a finally to Unlock at the end of the scope.

Having all that in mind, we'll turn to an example that illustrates a simple but common mistake that has its root in unstructuredness.

An Example, With a Common Initial Mistake

Let's take a fresh look at the same Quicksort example we considered briefly last month. [7] Here is a simplified traditional sequential implementation of quicksort:

// Example 1: Sequential quicksort
void Quicksort( Iter first, Iter last ) {
  // If the range is small, another sort is usually faster.
  if( distance( first, last ) < limit ) {
    OtherSort( first, last );
    return;
  }
  // 1. Pick a pivot position somewhere in the middle.
  // Move all elements smaller than the pivot value to
  // the pivot's left, and all larger elements to its right.
  Iter pivot = Partition( first, last );
  // 2. Recurse to sort the subranges.
  Quicksort( first, pivot );
  Quicksort( pivot, last );
}

How would you parallelize this function? Here's one attempt, in Example 2 below. It gets several details right: For good performance, it correctly reverts to a synchronous sort for smaller ranges, just like a good synchronous implementation reverts to a non-quicksort for smaller ranges; and it keeps the last chunk of work to run synchronously on its own thread to avoid a needless extra context switch and preserve better locality.

// Example 2: Parallelized quicksort, take 1 (flawed)
void Quicksort( Iter first, Iter last ) {
  // If the range is small, synchronous sort is usually faster.
  if( distance( first, last ) < limit ) {
    OtherSort( first, last );
    return;
  }
  // 1. Pick a pivot position somewhere in the middle.
  // Move all elements smaller than the pivot value to
  // the pivot's left, and all larger elements to its right.
  Iter pivot = Partition( first, last );
  // 2. Recurse to sort the subranges. Run the first
  // asynchronously, while this thread continues with
  // the second.
  pool.run(  [=]{ Quicksort( first, pivot ); }  );
  Quicksort( pivot, last );
}

Note: pool.run(x) just means to create task x to run in parallel, such as on a thread pool; and [=]{ f; } in C++, or ()=>{ f(); } in C#, is just a convenient lambda syntax for creating an object that can be executed (in Java, just write a runnable object by hand).

But now back to the main question: What's wrong with this code in Example 2? Think about it for a moment before reading on.

What's Wrong, and How To Make It Right

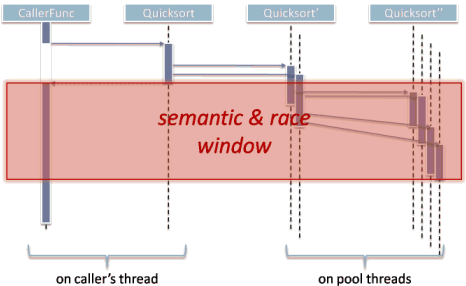

The code correctly executes the subrange sorts in parallel. Unfortunately, what it doesn't do is encapsulate and localize the concurrency, because this version of the code doesn't guarantee that the subrange sorts will be complete before it returns to the caller. Why not? Because the code failed to join with the spawned work. As illustrated in Figure 1, subtasks can still be running while the caller may already be executing beyond its call to Quicksort. The execution is unstructured; that is, unlike normal structured function calls, the execution of subtasks does not nest properly inside the execution of the parent task that launched them, but is unbounded and nondeterministic.
